Vibration Simulation Test Machine Electromagnetic Three-Axis Vibration Testing Machine

Name: Vibration Simulation Test Machine Electromagnetic ThreeAxis Vibration Testing Machine
Brand: Lonroy
Price: 1 USD

Brand Name : Lonroy

Model Number : LR-Q029

Certification : CE ISO ASTM

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 200 PCS

Delivery Time : 5-8 Workdays

Packaging Details : Wooden package

Max. Test Load : 0–60 kg

Vibration Direction : Vertical (Y-axis)

Amplitude : 0–5 mm (Random, frequency-dependent)

Frequency Sweep : 1–600 Hz (True bidirectional sweep; 1–3000 Hz customizable)

Max. Acceleration : 10G

Functions : FM / Programmable / Time Control

Contact Now

LR-Q029 Vibration Simulation Test Machine Electromagnetic Three-Axis Vibration Testing Machine

1. Product Description

The electromagnetic vibration table is widely used in industries such as national defense, aviation, communications, electronics, automobiles, home appliances, etc. This type of equipment is used to detect early faults, simulate actual working conditions for assessment and structural strength tests. It has a wide range of product applications, a broad applicable scope, significant test results, and is reliable. It supports sine wave, frequency modulation, sweep frequency, programmable, frequency doubling, logarithmic, and time control.

2. Specification

Parameter	Specification
Max. Test Load	0–60 kg
Vibration Direction	Vertical (Y-axis)
Table Size	500×500 mm / 750×750 mm / 1000×1000 mm / 1500×1500 mm (Select per product size)
Amplitude	0–5 mm (Random, frequency-dependent)
Frequency Sweep	1–600 Hz (True bidirectional sweep; 1–3000 Hz customizable)
Max. Acceleration	10G
Functions	FM / Programmable / Time Control
Precision	Display: 0.01Hz / Accuracy: 0.1Hz
Programmable Function	1–600 Hz, 1–8 segments (Freq/time settable per segment, cyclable)
Octave Function	0.01Hz step: ①Low→High ②High→Low③Low→High→Low (Cyclable)
Logarithmic Function	0.01Hz step: ①Down→Up ②Up→Down③Down→Up→Down (3 modes, cyclable)
Vibration Waveform	Sine wave (Half-wave / Full-wave)
Time Control	Arbitrary setting (seconds)
Power	0.75 kW
Power Supply	220V 50Hz
Net Weight	Approximately 100 kg

Wholesale Vibration Simulation Test Machine Electromagnetic Three-Axis Vibration Testing Machine from china suppliers

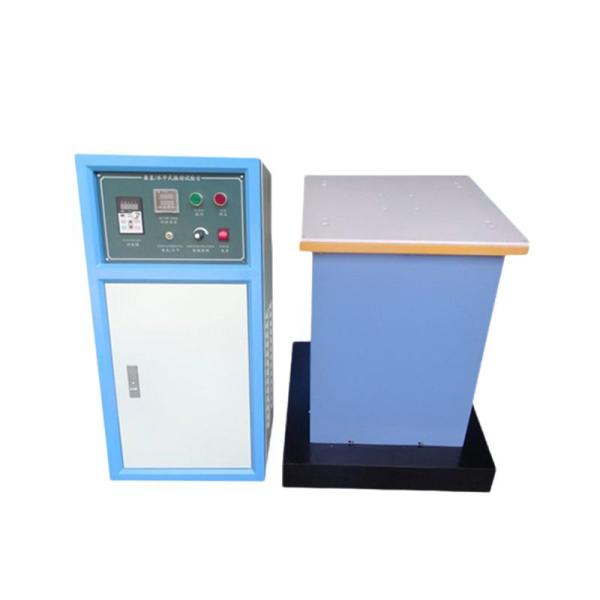

Vibration Simulation Test Machine Electromagnetic Three-Axis Vibration Testing Machine Images
