LR-Q025 Horizontal LCD Insertion and Extraction Force Testing Machine
1. Product Description
This machine is a professional testing machine specifically designed for checking the insertion and removal lifespan and force of products. It adopts microcomputer liquid crystal measurement and control technology, which can display insertion force, removal force, real-time force value, test speed, test times, test units, and has functions such as setting test times, adjusting speed and test stroke, and having overload protection. It is highly reliable and has received high praise from customers. It helps reduce the human resources of customers and improve the quality of products.
2. Product Features
The eccentric wheel design ensures that the test speed is not related to the test stroke (products with either long or short stroke can be tested quickly, improving test efficiency);
It can perform both insertion and extraction force tests and extraction life tests simultaneously, making it a dual-purpose device, thereby reducing budget costs;
It has overload weight setting and an automatic stop alarm function;
It has an automatic saving function, which can automatically save up to ten sets of test data and calculate the average value;
It is equipped with a micro printer, making it convenient for data viewing;
3. Specification
|
Test station
|
Single group
|
|
Capacity
|
0 - 50kg
|
|
Travel range
|
0 - 80mm (adjustable as needed)
|
|
Uses large-screen LCD liquid crystal display to show values
|
|
|
Insertion and removal speed
|
10 - 60 times/min (adjustable)
|
|
Insertion and removal force can be saved in 10 groups separately
|
|
|
Counter
|
0 - 999999 times
|
|
Weight units can be manually converted as follows
|
KG, N, IB
|
|
Printing
|
Equipped with a micro thermal printer,
capable of printing test data in Chinese
|
|
Dimensions
|
550 × 400 × 450 mm
|
|
Weight
|
Approximately 40KG twelve Power Supply
|
|
|

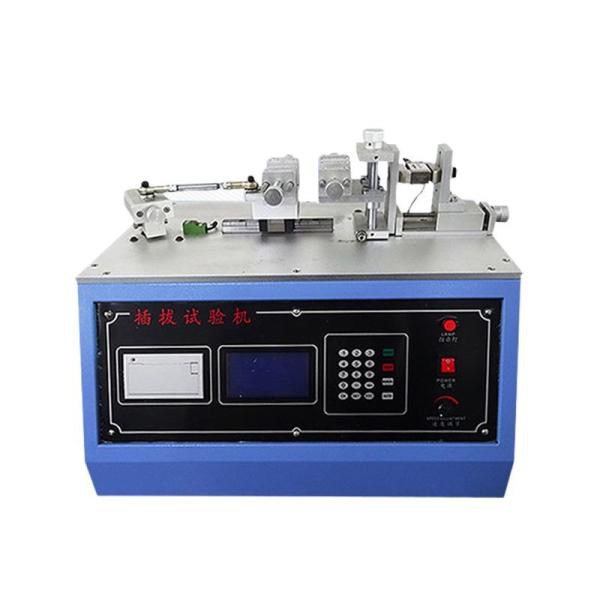

Horizontal LCD Insertion and Extraction Force Testing Machine Images
|
